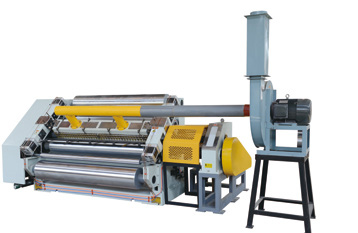

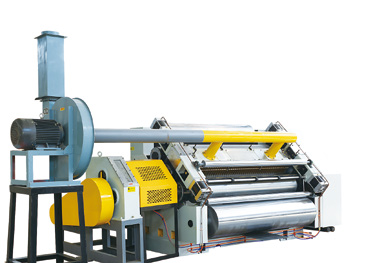

Fingerless Type Single Facer
Disponibil pentru precomandă
Corrugated roller adopt 52CrMo high quality alloy steel,quenched and tempered, hardened, polished surface, corrugated
diameter Ø380m,surface hardness HRC60 degrees; Adopt pneumatic cylinders control up and down of corrugated roller.
Compară
Fingerless Type Single Facer
Specifications:
Working width 1400–2200mm
Design speed 150m/min
Thickness wallboard Casting HT200/ thickness 180mm
Corrugated roller diameter Φ320mm/52CrMo alloy steel
Pressure roller diameter Φ320mm /45 steel
Preheating roller diameter Φ400mm/45 steel
Glue roller diameter Φ240mm/45 steel
Corrugated roller adopt 52CrMo high quality alloy steel,quenched and tempered,hardened,polished surface,corrugated diameter
Ø320m,surface hardness HRC60 degrees;
Adopt pneumatic cylinders control up and down of corrugated roller.
Gimble drive,with independent driver box.Enclosed gear oil immersion lubrication, extend the life of the gear.
Pressure roller diameter is Ø320mm which adopts 45# carbon steel modulation process.
The roller surface is grinded and chromed, controlled by air cylinder to up and down .
Vacuum adsorption to guide paper with a strong high-pressure turbine.With wind control device machine suction silencer
Adopt electric adjust glue width (coated paste run independently,when the host stopped,to prevent the paste dry can be choosed.)
Function:Glue
